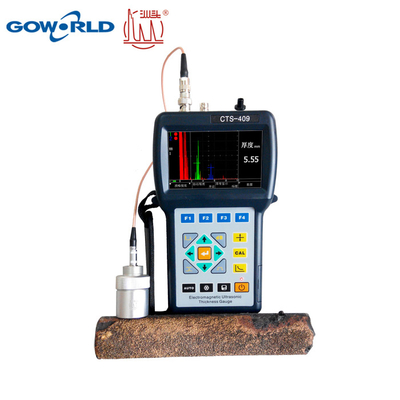

CTS-409 is a portable electromagnetic ultrasonic thickness gauge, which can measure the thickness of any metal or magnetic material without coupling agent or with non-contact mode, pushed out latest by Guangdong Goworld Co., Ltd. Ultrasonic Instrument Branch. Compared with the conventional ultrasonic thickness gauge, it has a unique advantage using in the high temperature, high speed, coating material thickness measurement.
| Standard | EN 12668-1 compliance |
| Matching probe | EMAT-001(Can be customized) |
| Measuring range | 1.0~300.0mm |
| Temperature range of work pieces | -40~300℃ |
| Display | 4.3" industrial-leveled TFT color LCD with 800×480 WVGA resolution |
| Excitation Pulse Intensity | 350 Vpp |
| Sampling Frequency / Bits | 160MHz/10Bit |
| Bandwidth Range | 300kHz~5MHz |
| Rectification | Positive half wave, negative half wave, full wave and RF |
| Range Adjustment Step | 1mm (Transverse wave) |
| Gain | Total attenuation of 110dB, step as 0.1, 2.0 and 6.0 |
| Distance from test object | 3mm |
| Horizontal Linearity Error | <0.4% |
| Dynamic Range | ≥30dB |
| Excitation Mode | permanent magnet |
| Weight | <1.0kg |
| Power Supply | Large-capacity lithium battery without memory effect, more than 8 hours |
