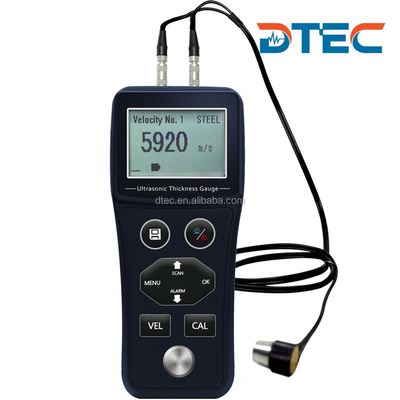

DTEC DT300 Digital Ultrasonic Thickness Gauge, High Accuracy 0.01mm or 0.001inch, Gauge Steel, DT300 Plastic, Ceramic, Glass

DT300 Ultrasonic Thickness Gauge is a high class thickness measuring gauge based on the same operating principles as SONAR, it is capable of measuring the thickness of various material with accuracy as high as 0.01mm or 0.001 inch.
It is suitable for a large variety of metallic such as steel, cast iron, aluminum, copper, and non-metallic materials such as plastic, ceramics, glass, etc., which is widely used in the fields of metallurgy, railway, shipping, aviation, oil etc.

• High precision timing chip and V-Path calibration mode to guarantee a high precision measurement;

• Measuring the thickness of various material with resolution as high as 0.01mm or 0.001 inch;

• Can measure various materials not only metallic steel, cast iron,alumnum,copper, but also non-metallic, plastic ceramic,glass,glass fiber and so on;

• Five types of selectable probes with 3 adjustable gain levels to meet different measuring conditions;

• Mini-USB interface used for communication with PC;

• Standard host software is upgradable, supporting online measurement;

• Two Calibration modes-Zero Calibration and Two-Point Calibration can be used to automatically correct system error;

• Support many measurement modes, such as single point mode, scanning mode, differrential mode and alarm mode;

• Sound velocity can be measured by a known thickness sample workpiece;

• 500 groups of storage capacity, enable to completely store the thickness data and sound velocity information;

• Stability indicator for measuring status monitoring;

• Battery indicator for battery quantity monitoring.

Standard Packing List:

Optional Probes:

Every set of our equipement will be carefully tested and double checked steps by steps before being packed and delivery,as we all know that among such fierce international competition,only 100% good quality and stable performance can finally attain the customer's trust.Hence,we will always put the equipment calibraton job in the first place while manufacturing.
