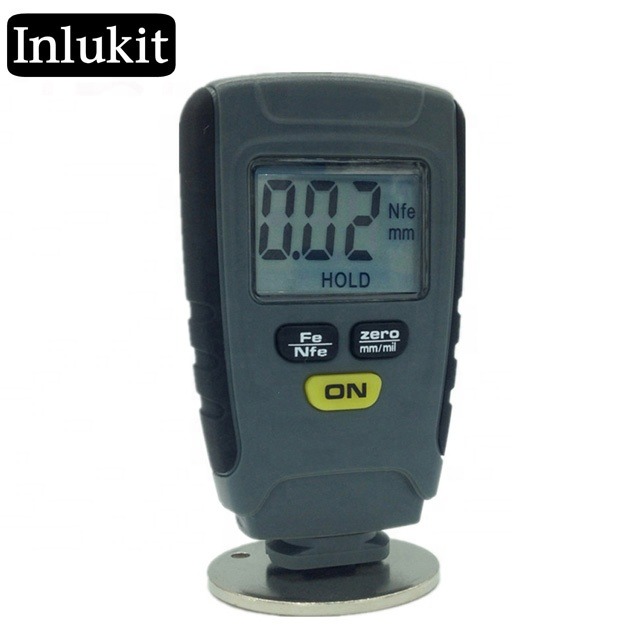

Coating Thickness Gauge Tester Car Automotive Paint Thickness Meter

This Coating Thickness gauge adapts Electromagnetic Induction principle and magnetic Induced EDD current. It can measure the thickness of non-metal coatings on metal surface.

This unit is ideal for manufacturing company, metal machinery industry, chemical industry, and commodity inspection especially in automobile trading.


Features:

Digital LCD display
Data HOLD function
Zero calibration
The with Comes Iron Base and non-Iron ( aluminum ) Base
Portable, user friendly and easy to carry even in pocket
Low battery indication
Auto shut-off if no operation in 1 minute


Specifications:

Target Measure: Non-metal coating thickness on the metal surface
The Range Measuring: 0 ~ 1.25mm nonmetal Metal Surface Coating's ON
Precision Measurement: 2% RDG 0.02mm [2% RDG ± 1mil (steel and aluminum only)]
Power Supply: 1 x 3V CR2032 button battery(NOT WITH BATTERY)
Working Current: <10mA
Auto Power off time: No actions in 1 min if leave the measured object
Minimum base diameter: 10mm
Critical base thickness: 0.5mm
Resolution the display: 0.02mm / 1mil
Operating Environment
Temperature: -5 ~ 40 ° C
Humidity: 5 ~ 95% RH non condensing
Storage Environment
Temperature: -20 ~ 60 ° C
Humidity: <85% RH (without battery)
Dimensions: 80 x 42 x 24mm
Weight:. Approx 36g (without battery)

Set Includes:
1 x Mini Thickness Meter
1 x 3V CR2032 Battery (without the battery)
1 x Iron Base
1 x Aluminum Base
English Quick Start Guide

1 x Mini Thickness Meter
1 x 3V CR2032 Battery (without the battery)
1 x Iron Base
1 x Aluminum Base
English Quick Start Guide
