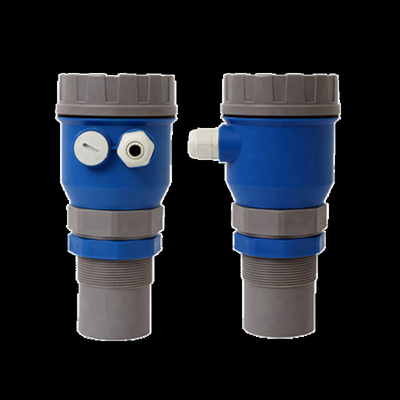

digital ultrasonic level gauge analogue water tank level sensor
| Type | YK-CW-200(Integration) | YK-CW-500(Split) |
| Span | 0-5m,0-8m,0-10m,0-15m,0-20m,0-25m,0-30m | |
| Blind Zone | <0.3m | |
| Temp.Compensation | Automatic Compensation,range0-99.9℃,Base 25℃ | |
| Accuracy | ±0.3%*MAX Span | |
| Resolution | 1mm | |
| Analog Signal Output | 0-20mA | |
| 4-20mA(resistance<300Ω) | 4-20mA(resistance<300Ω) | |
| 0-5V | ||
| 0-10V | ||
| Communication Protocol | RS485/HART | RS485/HART |
| Alarm Relay | AC220V,3A *2 | AC220V,3A *2 |
| Power Supply | 220VAC±10% 50HZ | 220VAC±10% 50HZ |
| 24VDC | 24VDC | |
| Protective Class | IP65(ABS) | IP65(ABS) |
| Install Hole Size | M60*2mm | M60*2mm |
| Connection | Threaded,Flange | Threaded,Flange |
| Working Condition | Ambient Temp.0-60℃,Relative Humidity:<90% | |
