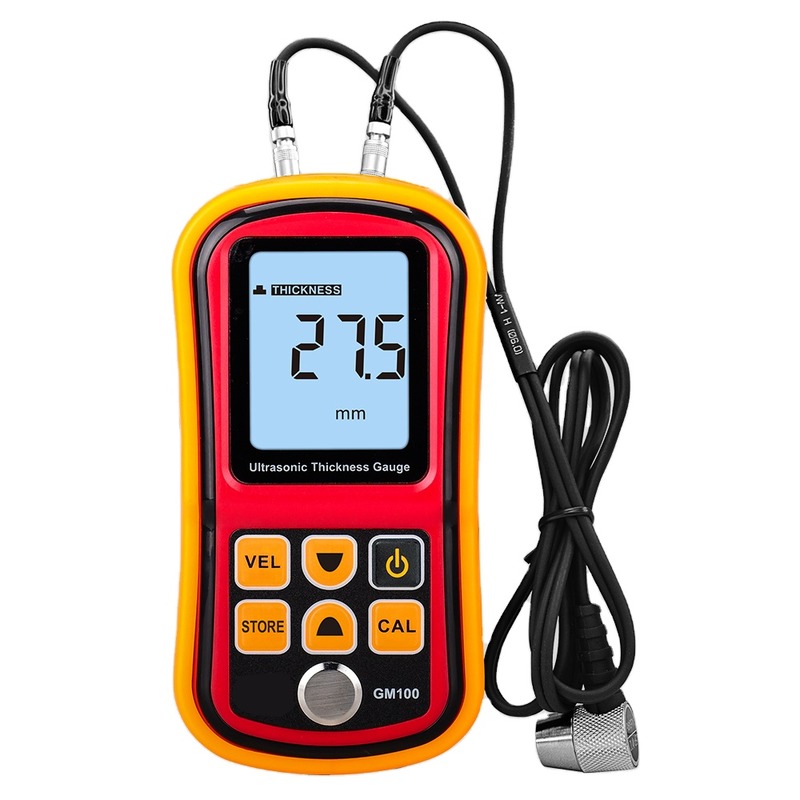

GM100 Ultrasonic thickness Gauge
This ultrasonic thickness gauge is an intelligent handhold product, which adopts ultrasonic measuring principle, and is controlled by micro processor, provides quick and precise measurement of thickness for most of industrial material. This unit is widely used in various precise measurement for different hardware / parts in industrial realm; one of its important applications is to monitor the level of during operation of various and pressure container. Diffusely applied in manufacture fields, metal processing,and commercial inspection. The material that conduct and reflect constant sonic velocity, this product is to be applicable to used.
Ultrasonic Thickness Gauge possesses the following features:
1.Data storage/deletion
2.Measuring sound velocity
3.LCD backlight display
4.Low battery reminder
5.Automatic shut-down
|
GM100 |
GM100+ |
GM130 |
|
|
Measuring range |
1.2 to 225.0mm (steel) |
1.20 to 300.00mm(steel) |
1.00 to 300.00mm(steel) |
|
Working frequency |
5MHz |
5MHz |
5MHz |
|
Lower limit of pipe measurement |
Φ20x3mm(steel) |
Φ20x3mm(steel) |
Φ15x2.0mm(Φ6mm transducer) Φ20x3.0mm(Φ10mm transducer) |
|
Sound velocity measurement range |
1000-9999m/s |
1000-9999m/s |
1000-9999m/s |
|
Probe (6mm) |
NO |
NO |
YES |
|
Probe (10mm) |
YES |
YES |
YES |
|
Power supply |
3*1.5V AAA batteries |
3*1.5V AAA batteries |
3*1.5V AAA batteries |
|
Weight |
202g |
202g |
223g |
|
Size |
72*146*29mm |
72*146*29mm |
72*29*146mm |
