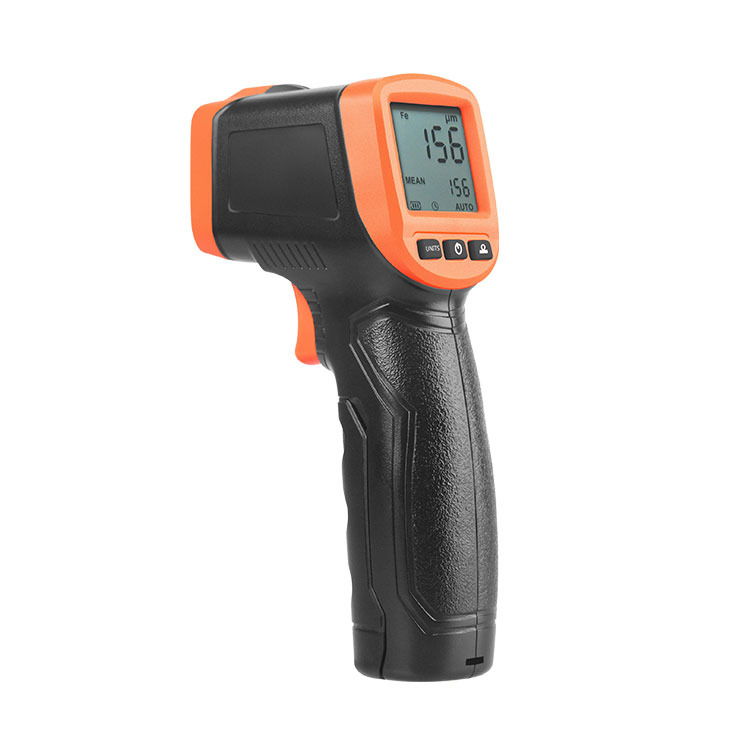

EC-420 Portable Car Paint Measuring Coating Thickness Gauge
| Model | EC-420 | |
| Probe | Probe F | Probe N |
| Measuring principle | Magnetic Induction | Eddy currents |
| Measuring range | 0~1500um | |
| Accuracy | ±(3%+1um) | |
| Resolution | 0.1um(0~100um);1um(>100um) | |
| Calibration mode | Zero calibration | |
| Statistics | No. of readings, mean, minimum, maximum | |
| Units | um, mm, mils | |
| Minimum radius of curvature of substrate | Convex 5 mm; Concave 25 mm | |
| Minimum measured area | Diameter 20mm | |
| Minimum thickness of substrate | 0.30mm | 0.05mm |
| Maximum measuring speed | 2 times/second | |
| Display | Segment code LCD screen with backlight | |
| Operation buttons | Power (Backlight), unit switching and clearing data (Left), statistics and zero calibration (Right) | |
| Operation temperature | Temperature:-10℃~50℃;Humidity:20%RH~90%RH(Non-condensation) | |
| Storage temperature | Temperature:-10℃~60℃;Humidity:20%RH~90%RH(Non-condensation) | |
| Power supply | 9V square battery | |
| Protection class | IP40 | |
| Size | 143mmx85mmx39mm | |
| Material | ABS | |
| Weight | About 100g(No battery) | |
| Warranty | 12 months | |
Description:
EC-420 is used for non-destructive coating thickness measurement of non-magnetic coatings, e.g. paint, enamel, chrome on steel, and insulating coatings, e.g. paint and anodizing coatings on non-ferrous metals.
Features:
Integrated probe of magnetic induction and eddy current
LCD shows maximum, minimum, average and number
Support Continuous measurement
LCD display with backlight
Power off automatically
Low power protection
Application:
Thickness test of automobile paint
Anti Rust treatment of metal
Film thickness testing
Electroplating
Hardware parts processing
