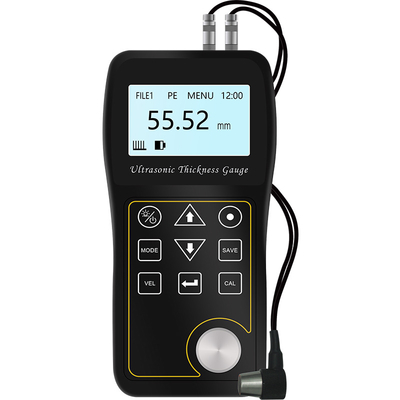

Product Overview
The thickness gauge adopts the principle of pulse reflection ultrasonic measurement, which is applicable to the measurement of the thickness of various materials reflected from the back of which the ultrasonic can propagate at a constant speed. This instrument can accurately measure various plates and various machined parts. It can be widely used in petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace and other fields. For different applications, the instrument is divided into basic type, high temperature type, cast iron type and precision type.
Product Features
1.Two measurement modes, PE and test, are used to accurately measure the thickness of various materials
2.It adopts high-precision timing chip and v-path calibration model, with wide measurement range and high measurement accuracy.
3.The measurement information can be completely stored, including thickness measurement value, measurement sound velocity and time information.
4.The display resolution is 0.01mm
5.The LCD contrast is adjustable, and it has LED backlight display, which can be used in various light environments.
6.Two AA alkaline batteries are used for power supply
Technical Parameters
|
Basic Type |
Cast Iron Type |
High Precision Type |
High Temperature Type |
|
|
Testing Range(Steel) |
1.0~250mm |
2.0~400mm |
0.75~35mm |
4.0~80mm |
|
Display Error(<10 mm) |
±0.04mm |
±0.04mm |
±0.04mm |
±0.05mm |
|
Testing Error(≥10 mm) |
±0.4%H mm |
±0.4%H mm |
±0.4%H mm |
±0.4%H mm |
|
Testing Frequency |
5MHz |
2MHz |
7.5MHz |
3MHz |
|
Display Accuracy |
0.01mm |
|||
|
Measurement period |
4 times/second |
|||
|
Velocity Range |
1000-9999m/s |
|||
|
Display |
FSTN LCD display, with cold light source illumination display |
|||
|
Working Voltage |
2*1.5V |
|||
|
Continuous Working time |
50 hours (without backlight) |
|||
|
Data Storage |
500 groups of measurement results, including measurement time and sound velocity information |
|||
|
Auto Power off |
Automatic shutdown without action for 2 minutes (settable), with switch button |
|||
|
Display Content
|
Thickness value, coupling state, electric quantity state, calibration state, sound velocity, time, etc |
|||
|
Size |
155mm X 68mmX27mm |
|||
|
Weight |
230g |
|||
Probe selection
|
Model |
Feature description |
Frequency(MHz) |
Diameter of contact area (mm) |
Measuring range (steel) (mm) |
Allowable contact temperature (℃) |
|
5M standard probe |
Universal |
5 |
10 |
1.0~250.0 |
-10~60 |
|
2M coarse crystal probe |
special-purpose |
2 |
12 |
2.0~500.0 |
|
|
7M Microbore Probe |
7.5 |
6 |
0 . 75 ~ 35 . 0 |
||
|
H2M high temperature probe |
3 |
12 |
4 . 0 ~ 80 . 0 |
-10~310 |
