DESCRIPTIONS

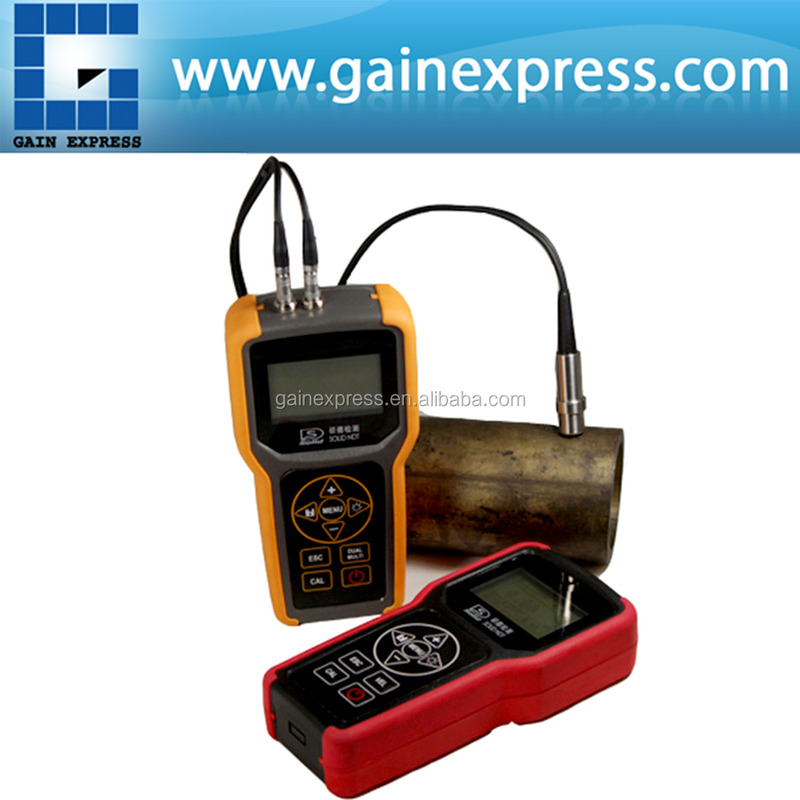

This Ultrasonic Thickness Gauge will be the best choice for accomplishing measurement. It fits many kinds of metal, such as steel, cast steel, aluminum, plastic ,China glass, glass fiber and any other good conductors of ultrasonic.
Advanced Auto Probe Zeroing Calibration and Echo-Echo mode are applied. Taking more accurate measuring result and higher production rate to you. It will supply a superior experience for users.
OPERATION
Inco Style Menu
Showing different data modes
Stroll Bars Indicates Function
Free to change : Huge front and normal
FUNCTION
USB for Storage, Plug and Play
- Convenient to read thickness values
Massive Data Memory - 100,000 data sets
-1000 files could be saved, every file could memory 1000 data sets
Statistic Function
- Online statistic: Max Min, Standard Deviation
- Document Statistic: Max Min Average, mean square error
Probe Connection/Coupling Indicator
SPECIFICATIONS
| Working principle |
| Ultrasound (ultrasonic pulse echo / echo echo) |
| Detection range |
|
Normal mode : 0.75-400mm Penetrate the coating : 2-25mm (Depending on the probe the measured material and surface condition) |
| Resolution |
| 0.1mm(> 100mm)/0.01mm(<100mm) |
| Indicator |
| ±(0.5%H+0.01)mm |
| Velocity |
| 1000~9999m/s,Preset 5 commonly used material velocity |
| Calibration |
| Through the realization of real-time calibration probe zero unique automatic zerocalibration technique |
| V Range Correction Auto |
| Probeconnection indicating Yes |
| Coupling condition |
| Cue signal coupling intensity; measured value displayed solid / hollow change visual indication of whether the normal measurement |
| Product Dimension |
| 16 x 8.4 x 3.4cm |
| Item Weight |
| 0.9kg |
| Shipping Weight |
| 1.1kg |
| Working environment |
|
Temperature: -20℃~70℃ Humidity: 5%~90% The environment without strong vibration no strong magnetic field non corrosivemedium and serious dust. |
| Excitation pulse |
| 150V Negative spike |
| Gain |
| High / low / automatic |
| Frequency bandwidth |
| 0.5-15MHz |
| Display |
| LCD dot matrix display |
| High contrast 128X64 |
| Beautiful characters |
| Number Symbol High Brightness EL Backlight |
| Power source |
| Battery 1.5V AAA x 4 |
| Working time |
| Can work continuously for 200 hours (standard test conditions) |
| Package includes |
|
Host x 1 Probe x 1 Instruction Menu x 1 Packingbox x 1 Coupling x 1 |
