elcometer MT200 Ultrasonic Coating Thickness Gauge Coating Thickness Gauge
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Grade: Industrial
Warranty: 1 YEAR
Customized support: OEM, ODM
Model Number: MT200
Product name: TG-MT200 Ultrasonic Thickness gauge digital Ultrasonic thickness gauge
Measure range: 0.75mm to 300mm(Steel)
Resolution: 0.1/0.01mm(selectable).
Work mode: Single point mode and Scan mode.
Accuracy: ±(0.5%Thickness+0.04)mm
Units: Metric/English unit selectable.
Communication: RS232 serial port.
Outline dimensions: 132H X 76.2W mm.
Weight: 345g
Sound Velocity Range: 1000~9999 m/s.
인증: CE
기본 정보
인증: CE
Model Number: MT200
결제 및 배송 조건
Packaging Details: TG-MT200 Ultrasonic Thickness Gauge Digital Ultrasonic Thickness Gauge 32*25*9mm,2.5kg
Supply Ability: 5000 Unit/Units per Week TG-MT200 Ultrasonic Thickness Gauge Digital Ultrasonic Thickness
제품 설명
Product Description

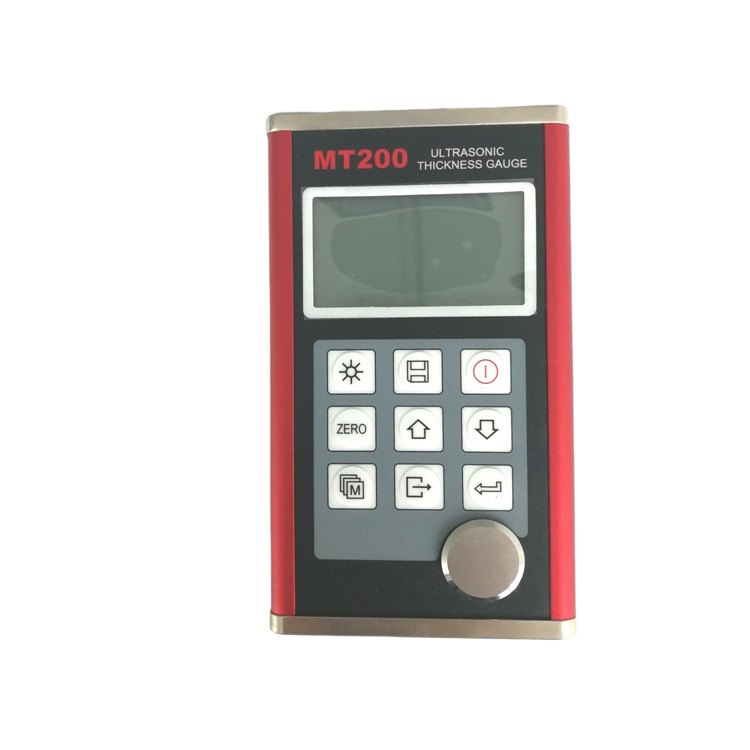

TG-MT200 Ultrasonic Thickness Gauge
It is a digital ultrasonic thickness gauge. Based on the same operating principles as SONAR, the MT200 is capable of measuring the thickness of various materials with accuracy as high as 0.01 millimeters, or 0.001inches. It is suitable for a variety of metallic and non-metallic materials.

TG-MT200 Ultrasonic Thickness Gauge Digital Ultrasonic Thickness Gauge
Display
128×64 dot matrix LCD with EL backlight
Measuring Range
0.75~300mm (in Steel)
 Sound Velocity Range
 1000~9999 m/s
Resolution
0.1/0.01mm(selectable)
 Accuracy
±(0.5%Thickness+0.04)mm
Units
Metric/English unit selectable
Advantages
Four measurements readings per second for single point measurement, and ten per second for Scan Mode
Memory for 20 files (up to 99 values for each file) of stored values.
Upper and lower limit can be pre-set. It will alarm automatically when the result value exceeding the limit.
Power Supply
Two "AA" size, 1.5 volt alkaline batteries. 100 hours typical operating time(EL backlight off)
Communication
RS232 serial port
Case
Extruded aluminum body suitable for use under poor working conditions
Outline dimensions
132H X 76.2W mm.
Weight
345g
Features
TG-MT200 Ultrasonic Thickness Gauge Digital Ultrasonic Thickness Gauge

1. Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.

2. Four transducer models are available for special application, including for coarse grain material and high temperature applications.

3. Probe-Zero function, Sound-Velocity-Calibration function

4. Two-Point Calibration function.

5. Two work modes: Single point mode and Scan mode.

6. Coupling status indicator showing the coupling status.

7. Battery information indicates the rest capacity of the battery.

8. Auto sleep and auto power off function to conserve battery life.

9. Optional software to process the memory data on the PC.

10. Optional thermal mini-printer to print the measured data via RS232 port.
