풍모 갤러리 제품 설명 따옴표를 요구하십시오

풍모

제품 사양

Model Number: SW6

Measurement Range: 0.65mm~500mm

Working temperature: -10~+50Â°C(Room temperature measuring environment)

Display accuracy: 0.01mm/0.001inch

Material sound velocity: 509m/s~18699m/s

Measurement accuracy: Â±(0.5%H+0.03)mm

Reception bandwidth: 1MHz~10MHz(-3dB)

Measurement frequency: 2~20 times/second(can set up optionally)

Power: 3VDC(two pieces of AA alkaline batteries)

Working time: 280 hours(automatic mode)100 hours(Backlight opens)

Display screen: 128*64 lattice LCD

기본 정보

Model Number: SW6

결제 및 배송 조건

Packaging Details: Outside packing Size(L*W*H mm):270*230*70 G.W.(KG): 1.2kg Packing way: 1pcs/plastic bag per unit,carton for outside packing

제품 설명

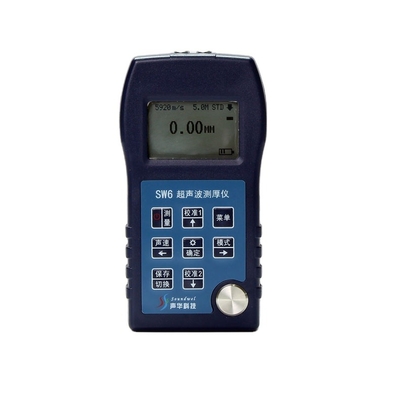

SW6 Ultrasonic Thickness Gauge with Multiple-functions

Product Description

Feature:

1.Multi-functions combined in one machine,be widely used in high precision measurement demand on different materials, can be used on thickness measuring of steel,cast iron,aluminum,copper,zinc,quartz,glass,polyethylene,PVC,grey cast iron,ductile cast iron and so on;
2.Seven type of working modes;
3.High measurement accuracy(0.01mm),big measurement range( 0.7mm-400mm),big storage(2000 groups);
4.Built-in one piece of calibration test module:whose thickness is 3 mm,and it can be operated conveniently and swiftly;
5.Standard USB interface, with strong universality;
6.The screw tightens the batteries, which has high safety and reliability.

509m/s~18699m/s SW6 ultrasonic thickness gauge has the function of self-checking on the machine, which can improve the measurement accuracy
